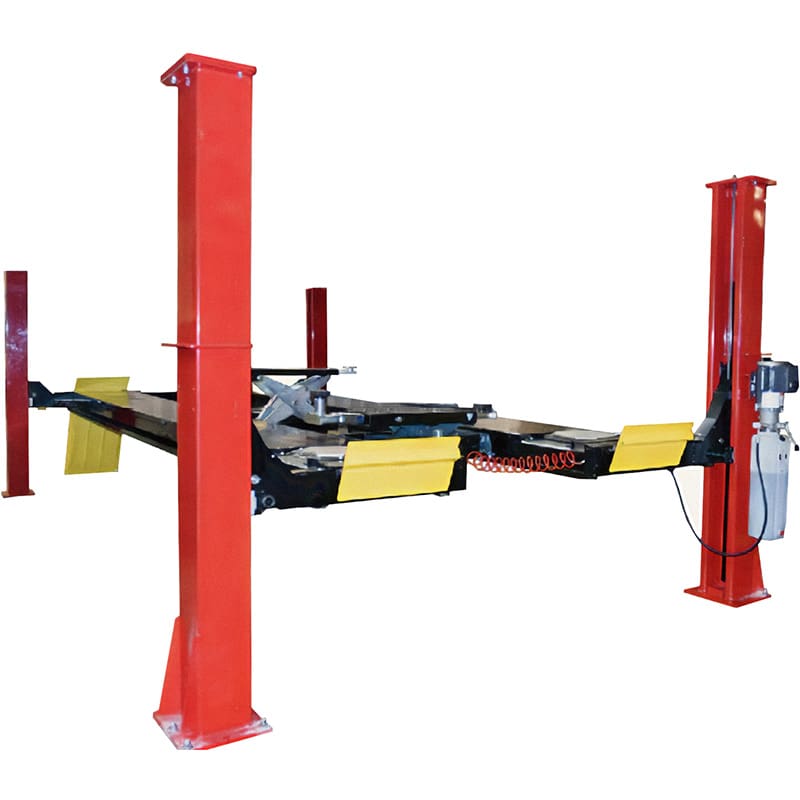

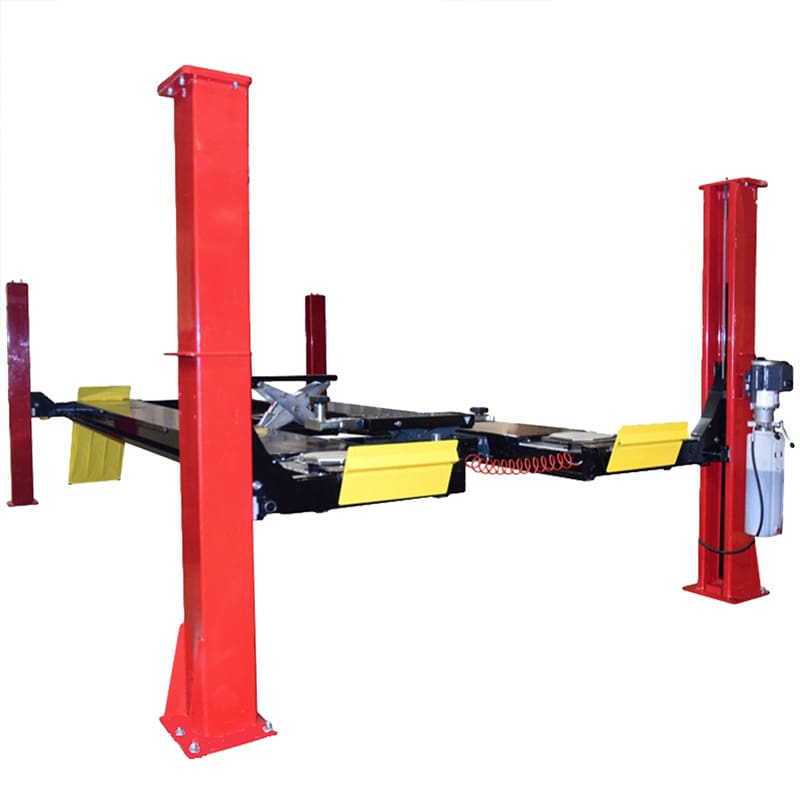

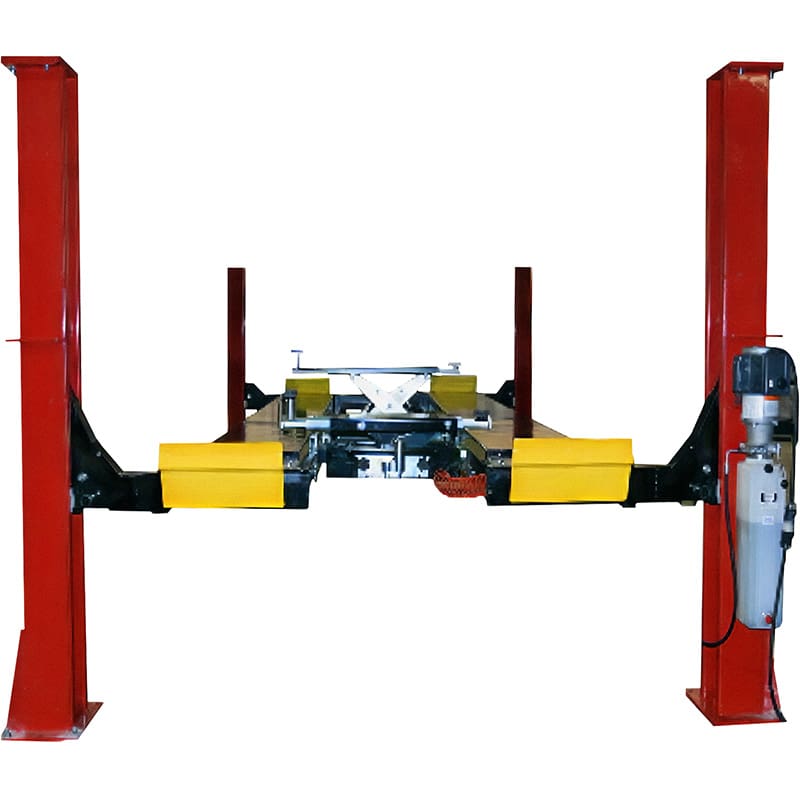

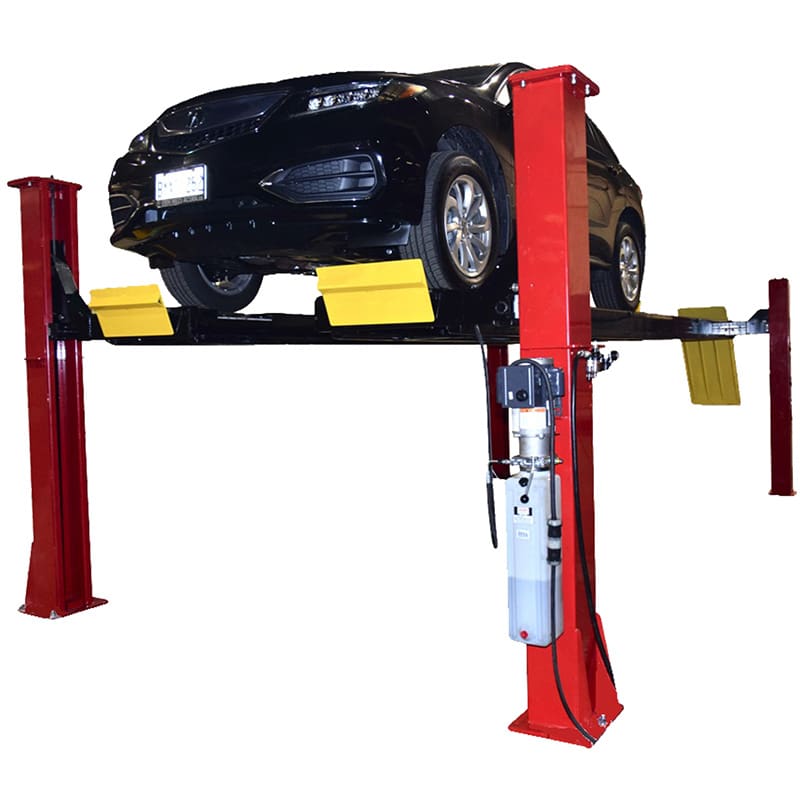

Part number 415ALOXR1P is the Autel Alignment 15K Open Post Lift with Ext. Ramps, an ALI-certified 4-post alignment lift rated at 15,000 lb. with an open-front design for alignment service. Overall length is 285-1.8 inches with 237-inch runways, accommodating vehicles up to 164 inches for four-wheel alignments and 220-1.2 inches for two-wheel alignments. Full-floating rear slip plates, stainless steel front radius plates, and UHMW turn plate pocket protectors are standard. It ships with two 7,500-lb. heavy-duty air/hydraulic rolling jacks with integrated rail detents for accurate positioning, each covered by a five-year manufacturer parts warranty. A center-mount air outlet kit, an LED light kit, and tire inflation air kits at each wheel are also included, and the lift runs on a 220-volt, single-phase power unit. Finish: black runways and baseframes, yellow front and rear ramps, and red columns with a red Autel logo label. Made in North America.
Warranty: 1-year ADAS Outlet limited warranty; where the manufacturer provides longer coverage (e.g., 5-year parts on lifts), that manufacturer warranty also applies. Warranty details
Not sure this is the right fit for your shop? Our team can help you compare options and check vehicle coverage.
The Autel 15K Open Post Alignment Lift w (part number 415ALOXR1P) is part of our ADAS Calibration & Lifts lineup.
Part number 415ALOXR1P is the Autel Alignment 15K Open Post Lift with Ext. Ramps, an ALI-certified 4-post alignment lift rated at 15,000 lb. with an open-front design for alignment service. Overall length is 285-1.8 inches with 237-inch runways, accommodating vehicles up to 164 inches for four-wheel alignments and 220-1.2 inches for two-wheel alignments. Full-floating rear slip plates, stainless steel front radius plates, and UHMW turn plate pocket protectors are standard. It ships with two 7,500-lb. heavy-duty air/hydraulic rolling jacks with integrated rail detents for accurate positioning, each covered by a five-year manufacturer parts warranty. A center-mount air outlet kit, an LED light kit, and tire inflation air kits at each wheel are also included, and the lift runs on a 220-volt, single-phase power unit. Finish: black runways and baseframes, yellow front and rear ramps, and red columns with a red Autel logo label. Made in North America.
The Autel Alignment 15K Open Post Lift with Ext. Ramps, part number: 415ALOXR1P, is an ALI-certified 4-post alignment lift with a rated capacity of 15,000 lb. and features an open-front design for alignment service. The lift features an overall length of 285-1.8 inches with 237-inch runways, accommodating vehicles up to 164 inches for four-wheel alignments and 220-1.2 inches for two-wheel alignments. Standard alignment equipment includes full-floating rear slip plates, stainless steel front radius plates, and UHMW turn plate pocket protectors. The lift is supplied with two 7,500-lb. heavy-duty air/hydraulic rolling jacks with integrated rail detents for accurate positioning, each backed by a five-year parts warranty. Additional features include a center-mount air outlet kit, an LED light kit, and tire inflation air kits at each wheel. Operation is supported by a 220-volt, single-phase power unit. The lift is finished with black runways and baseframes, yellow front and rear ramps, and red columns, accented by a red Autel logo label. Made in North America.
Not sure this is the right fit for your shop? Talk to an expert and we will help you compare options.
| Brand | Autel |
|---|
