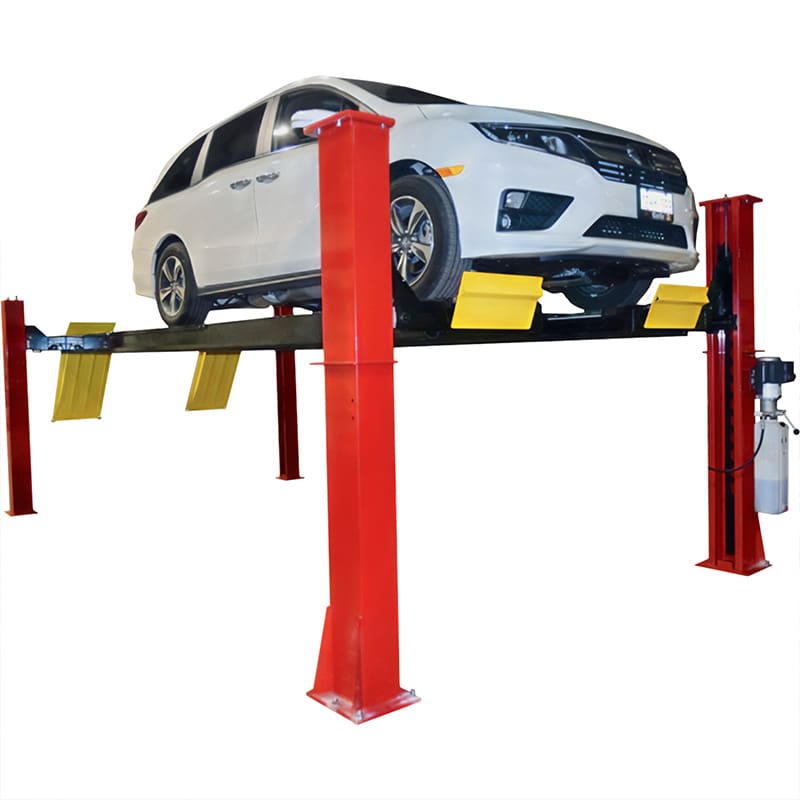

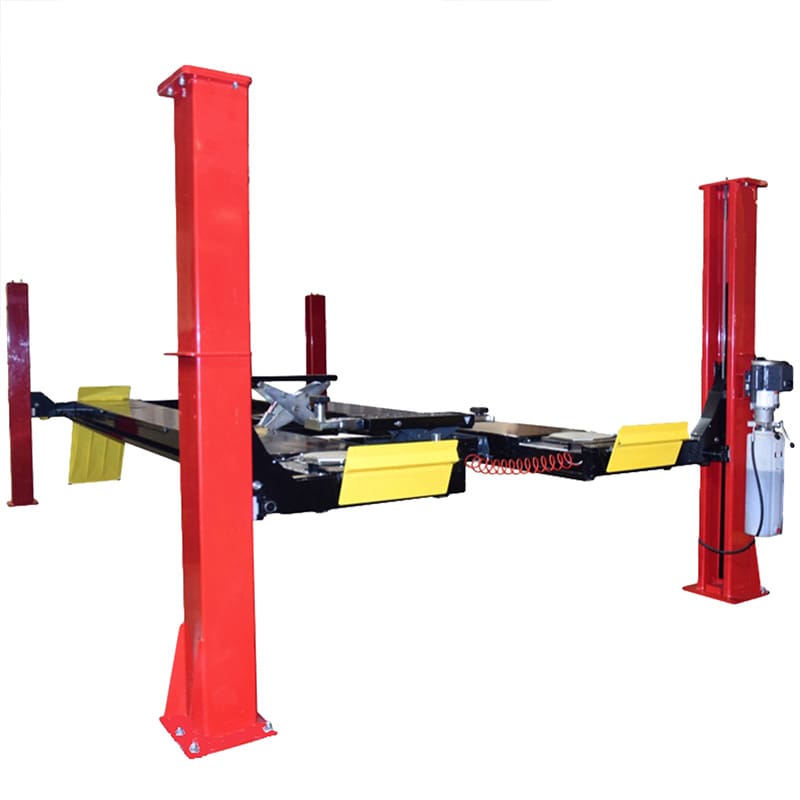

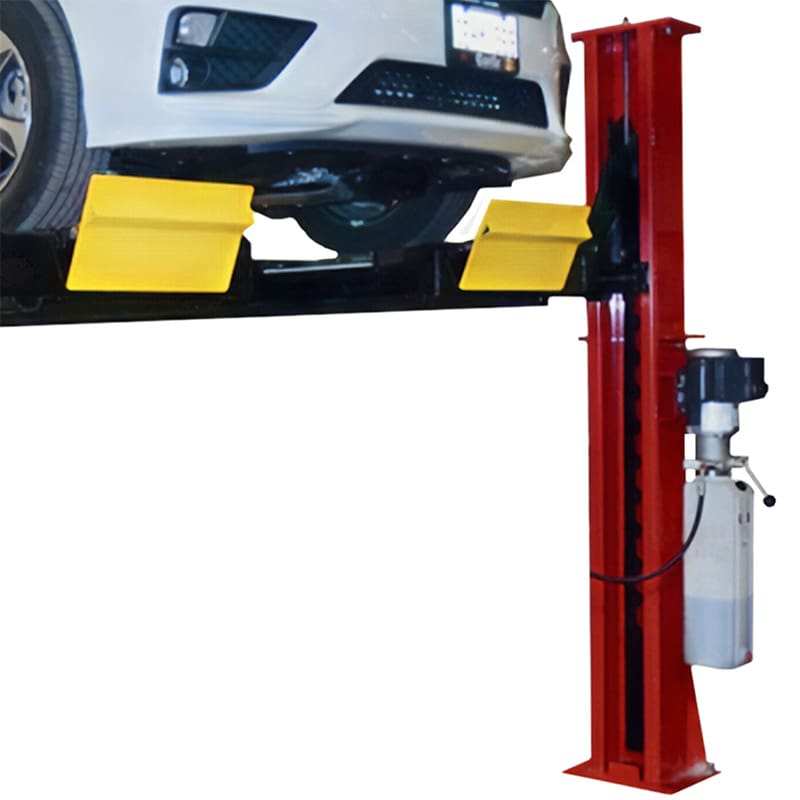

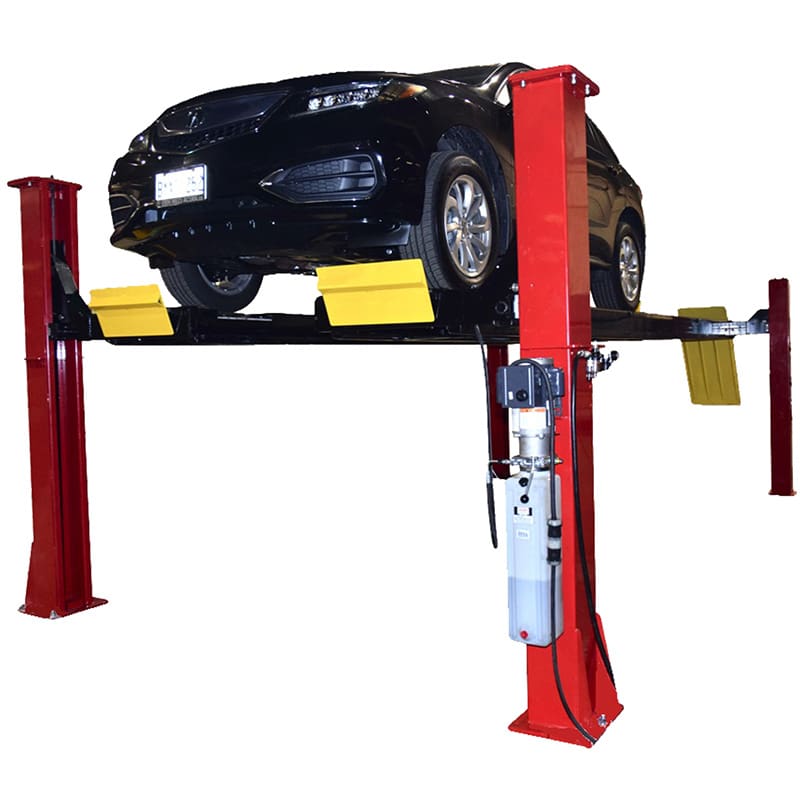

Part number 415ALORR1P is the Autel Alignment 15K Open Post Lift, an ALI-certified 4-post alignment lift rated at 15,000 lb. with an open-front design for alignment service. It is 257-7.8 inches long overall with 210-inch runways, and its maximum alignment capability is 164 inches for four-wheel alignments and 193.5 inches for two-wheel alignments. Equipment includes full-floating rear slip plates, UHMW turn plate pocket protectors, stainless steel front radius plates, and two sets of rollback bars. Two heavy-duty air/hydraulic rolling jacks, each rated at 7,500 lb. and covered by a five-year parts warranty, expand service capability, and integrated rail detents position the jacks accurately. A center-mount air outlet kit, LED light kit, and tire inflation air kits at each wheel are also included. The lift runs on a 220-volt, single-phase power unit and is finished with black runways and baseframes, yellow front and rear ramps, red columns, and a red Autel logo label.
Not sure this is the right fit for your shop? Our team can help you compare options and check vehicle coverage.
Part number 415ALORR1P is the Autel Alignment 15K Open Post Lift, an ALI-certified 4-post alignment lift rated at 15,000 lb. with an open-front design for alignment service. It is 257-7.8 inches long overall with 210-inch runways, and its maximum alignment capability is 164 inches for four-wheel alignments and 193.5 inches for two-wheel alignments. Equipment includes full-floating rear slip plates, UHMW turn plate pocket protectors, stainless steel front radius plates, and two sets of rollback bars. Two heavy-duty air/hydraulic rolling jacks, each rated at 7,500 lb. and covered by a five-year parts warranty, expand service capability, and integrated rail detents position the jacks accurately. A center-mount air outlet kit, LED light kit, and tire inflation air kits at each wheel are also included. The lift runs on a 220-volt, single-phase power unit and is finished with black runways and baseframes, yellow front and rear ramps, red columns, and a red Autel logo label.
| Brand | Autel |
|---|
